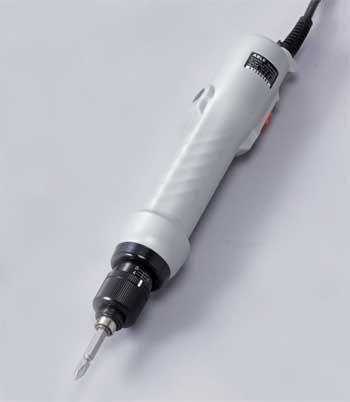

Brushless Screwdriver(Push Start Automatic Series (L) TM-1025P/1030P/1040P/1050P)

Brushless Screwdriver

Product ID: Push Start Automatic Series (L) TM-1025P/1030P/1040P/1050P

Features:

■Benefits Of Brushless Technology
    ‧no Carbon Particles-no Contamination
    ‧less maintenance-no Brushes To Change
    ‧no Brush Friction-less Heat Generated, More Comfort
    ‧low Noise Level-won’t Interfere With Other Electronic
■New Ergonomic Soft Grip lncreases Comfort-the Unique Shape
■Easier To Hold For Extended Use
■Ultra Fast Clutch Minimizes Torque Reaction Devices
■Conforms to EMI,EMC international Safety Standards.

型號(Item NO.)

TM-1025P

TM-1030P

TM-1040P

TM-1050P

輸入電壓Input

24Vdc

扭力
(Torque Range)

Kgf-cm

3.0~25

5.0~30

10.0~40

15.0~50

Lbf-in

2.6~21.8

4.4~26.1

8.7~34.7

2.6~43.5

N-m

0.29~2.43

0.49~2.91

0.29~1.94

空轉速r.p.m.

1000

適用螺絲
(m/m)

機械牙Ø徑
(Machine)

2.6~4.0(mm)
0.10~0.16(in)

3.0~5.0(mm)
0.12~0.20(in)

4.0~5.5(mm)
0.12~0.22(in)

2.6~4.0(mm)
0.10~0.24(in)

自攻牙Ø徑
(Tapping)

2.3~3.5(mm)
0.09~0.14(in)

2.6~4.0(mm)
0.10~0.16(in)

3.0~4.5(mm)
0.10~0.18(in)

2.3~5.0(mm)
0.09~0.20(in)

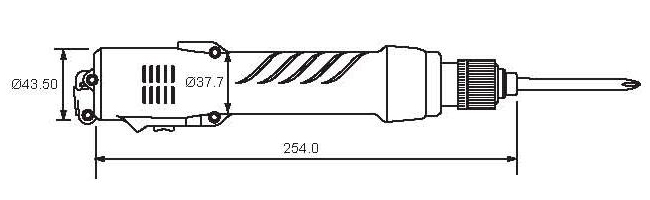

Plan Of Item

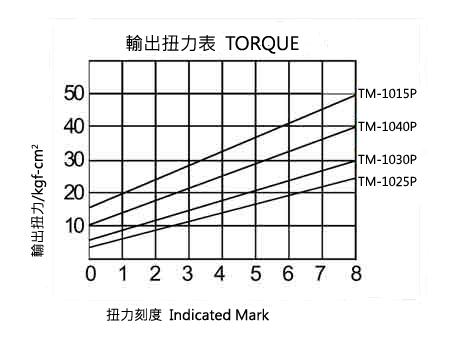

輸出扭力表(TORQUE RANGE)	Switching power吊掛式

Plan	型號(Item NO.)	TM-4500
	輸入電壓(INPUT)	100-240VAC 50~60Hz
	輸出電壓(OUTPUT)	24VDC 120W MAX
	長度(LENGTH)	135mm
	重量(WEIGHT)	350g

Certificate:

Order Information:

Minimum Order: Negotiable
Branded Product
FOB: Taiwan

Contact:	Cynthia Chuange
Address:	2Fl., No. 53, Hsin I Road, Banciao Hsien, Taipei County, Taiwan
TEL:	886-2-29506260~1, 89518187
FAX:	886-2-29586980
Email:	sales@electric-screwdriver.com.tw
URL:	http://www.electric-screwdriver.com.tw
ZIP:	220
