AC Electric Screwdriver-Lever Start Semi Auto Series(L)( (110V) TM-5125L/5130L-(220V) TM-5225L/5230L)

Home> Products>AC-Lever Start Semi Auto

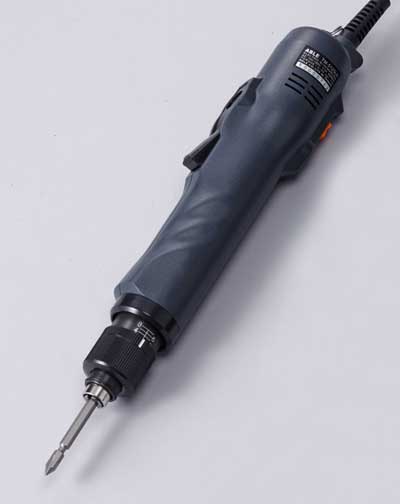

AC Electric Screwdriver-Lever Start Semi Auto Series(L)

Product ID: (110V) TM-5125L/5130L-(220V) TM-5225L/5230L

Features:

1. An optimal tool in economic and durable design.

2. The best choice for general screw assembly of simple products.

3. High precision with a large range of torque output.

4. Built-in cooling fan to enhance ventilation of carbon brush and low gripping temperature.

5. Simple installation, standardized parts, and easy and quick maintenance.

6. Conforms to EMI, EMC international Safety Standards.

型號(Item NO.)

AC110V～120V 50/60Hz 0.3A

AC220V～240V 50/60Hz 0.2A

TM-5125L

TM-5130L

TM-5225L

TM-5230L

扭力
(Torque Range)

Kgf-cm

3.0~25

5.0~30

3.0~25

5.0~30

Lbf-in

2.6~21.8

4.4~26.1

2.6~21.8

4.4~26.1

N-m

0.29~2.43

0.49~2.91

0.29~2.43

0.49~2.91

空轉速r.p.m.

850

750

850

750

適用螺絲
(m/m)

機械牙Ø徑
(Machine)

2.6~4.0(mm)
0.10~0.16(in)

3.0~5.0(mm)
0.12~0.20(in)

2.6~4.0(mm)
0.10~0.16(in)

3.0~5.0(mm)
0.12~0.20(in)

自攻牙Ø徑
(Tapping)

2.3~3.5(mm)
0.09~0.14(in)

2.6~4.0(mm)
0.10~0.16(in)

2.3~3.5(mm)
0.09~0.14(in)

2.6~4.0(mm)
0.10~0.16(in)

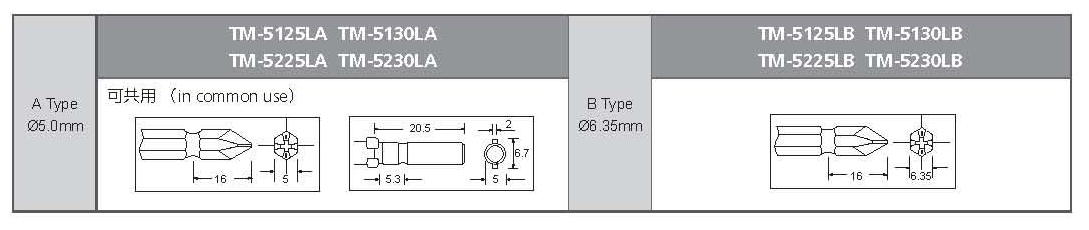

Plan Of Item

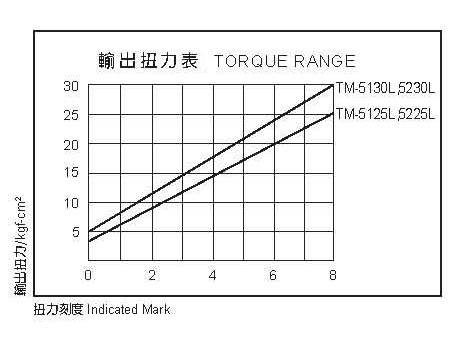

輸出扭力表(TORQUE RANGE)

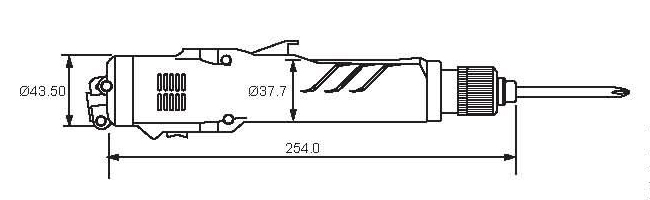

Plan

Certificate:

Order Information:

Minimum Order: Negotiable
Branded Product
FOB: Taiwan

Contact:	Cynthia Chuange
Address:	2Fl., No. 53, Hsin I Road, Banciao Hsien, Taipei County, Taiwan
TEL:	886-2-29506260~1, 89518187
FAX:	886-2-29586980
Email:	sales@electric-screwdriver.com.tw
URL:	http://www.electric-screwdriver.com.tw
ZIP:	220
