AC Electric Screwdriver-Push Start Full Auto Type((110V) TM-7102P/7105P/7110P/7116P-(220V)TM-7202P/7205P/7210P/7216P)

Home> Products>AC - Push Full Auto

AC Electric Screwdriver-Push Start Full Auto Type

Product ID: (110V) TM-7102P/7105P/7110P/7116P-(220V)TM-7202P/7205P/7210P/7216P

Features:

1. Full automatic clutch, low vibration, and user-friendly and comfortable operation.

2. High torque motor, low noise and high efficiency.

3. Built-in cooling fan to enhance ventilation of carbon brush and low gripping temperature.

4. Electro mechanical brake with non-slip high-precision torque control.

5. Simple installation, standardized parts, and easy and quick maintenance.

6. Conforms to EMI, EMC international Safety Standards.

型號(Item NO.)

AC110V～120V 50/60Hz 0.3A

AC220V～240V 50/60Hz 0.2A

TM-7102P

TM-7105P

TM-7110P

TM-7116P

TM-7202P

TM-7205P

TM-7210P

TM-7216P

扭力
(Torque Range)

Kgf-cm

0.2~1.2

0.5~4.5

1.0~10

2.0~16

0.2~1.2

0.5~4.5

1.0~10

2.0~16

Lbf-in

0.17~1.04

0.44~3.9

0.87~8.7

1.74~13.9

0.17~1.04

0.44~3.9

0.87~8.7

1.74~13.9

N-m

0.02~0.12

0.05~0.44

0.1~0.97

0.19~1.46

0.02~0.12

0.05~0.44

0.1~0.97

0.19~1.46

空轉速r.p.m.

1000

適用螺絲
(m/m)

機械牙Ø徑
(Machine)

1.0~2.6(mm)
0.04~0.09(in)

1.6~3.0(mm)
0.06~0.12(in)

2.0~3.5(mm)
0.08~0.16(in)

1.2~3.0(mm)
0.05~0.12(in)

1.0~2.6(mm)
0.04~0.10(in)

1.6~3.0(mm)
0.06~0.12(in)

自攻牙Ø徑
(Tapping)

1.0~2.3(mm)
0.04~0.09(in)

1.6~2.6(mm)
0.06~0.10(in)

2.0~3.5(mm)
0.08~0.12(in)

1.2~2.6(mm)
0.05~0.10(in)

1.0~2.3(mm)
0.04~0.09(in)

1.6~2.6(mm)
0.06~0.10(in)

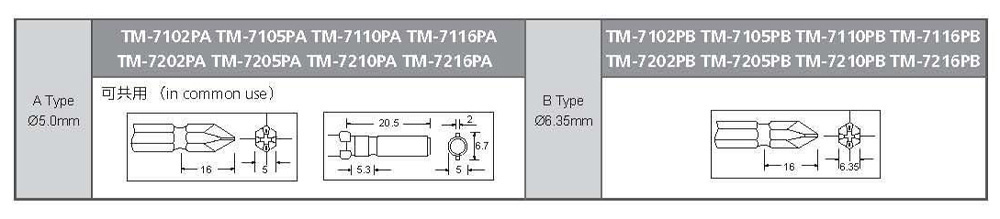

Plan Of Item

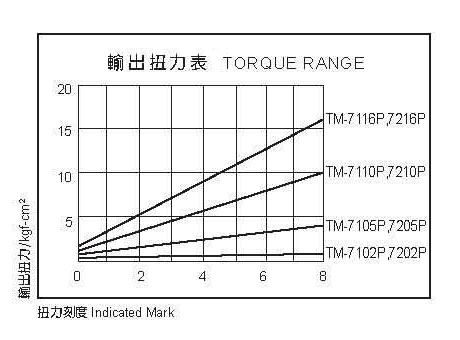

輸出扭力表(TORQUE RANGE)

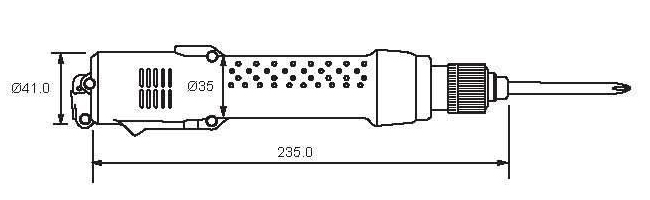

Plan

Certificate:

Order Information:

Minimum Order: Negotiable
Branded Product
FOB: Taiwan
