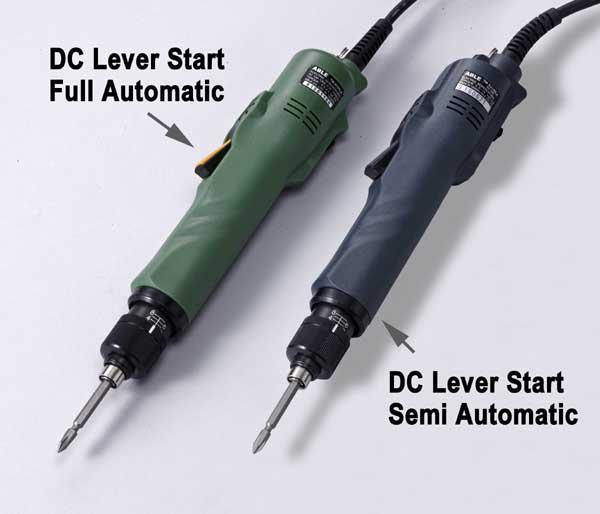

DC Electric Screwdriver(Lever Start Full & Semi Automatic Type TM-2316L/2320L/S2316L/S2320L)

Home> Products>DC-Lever Start Full/Semi

DC Electric Screwdriver

Product ID: Lever Start Full & Semi Automatic Type TM-2316L/2320L/S2316L/S2320L

Features:

●Full Automatic clutch, low vibration, and user-friendly and comfortable operation

●High Unique motor, low noise and high efficiency.

●Built-in cooling fan to enhance ventilation of carbon brush and low gripping temperature.

●Electronic mechanical brake with non-slip high-precision torque control.

●Simple installation, standardized parts, and easy and quick maintainance.

●Conforms to EMI,EMC international Safety Standards.

●CE Certification

型號(Item NO.)

全自動手按式 Full-Automatic Lever Start

半自動手按式 Semi-Automatic Lever Start

TM-2316L

TM-2320L

TM-2316L

TM-2320L

扭力
(Torque Range)

Kgf-cm

2.0~16

3.0~20

2.0~16

3.0~20

Lbf-in

1.74~13.9

2.6~17.4

1.74~13.9

2.6~17.4

N-m

0.19~1.55

0.29~1.94

0.19~1.55

0.29~1.94

空轉速r.p.m.

750/1000

適用螺絲
(m/m)

機械牙Ø徑
(Machine)

2.0~3.5(mm)
0.08~0.16(in)

2.6~4.0(mm)
0.10~0.16(in)

2.0~3.5(mm)
0.08~0.16(in)

2.6~4.0(mm)
0.10~0.16(in)

自攻牙Ø徑
(Tapping)

2.0~3.0(mm)
0.08~0.12(in)

2.3~3.5(mm)
0.09~0.14(in)

2.0~3.0(mm)
0.08~0.12(in)

2.3~3.5(mm)
0.09~0.14(in)

Plan Of Item

輸出扭力表(TORQUE RANGE)	POWER SUPPLY / ADAPTOR 變壓器

Plan	型號(Item NO.) TM-4130R(全自動用)	TM-4230R(全自動用)
	型號(Item NO.) TM-S4130R(半自動用)	TM-S4230R(半自動用)
	輸入電壓(INPUT) 100-120VAC 50~60Hz	220-240VAC 50~60Hz
	輸出電壓(OUTPUT) 23VDC 120W MAX
	長度(LENGTH) 135mm
	重量(WEIGHT) 350g

Certificate:

Order Information:

Minimum Order: Negotiable
Branded Product
FOB: Taiwan

Contact:	Cynthia Chuange
Address:	2Fl., No. 53, Hsin I Road, Banciao Hsien, Taipei County, Taiwan
TEL:	886-2-29506260~1, 89518187
FAX:	886-2-29586980
Email:	sales@electric-screwdriver.com.tw
URL:	http://www.electric-screwdriver.com.tw
ZIP:	220
