Features:

■Benefits Of Brushless Technology
    ‧no Carbon Particles-no Contamination
    ‧less maintenance-no Brushes To Change
    ‧no Brush Friction-less Heat Generated, More Comfort
    ‧low Noise Level-won’t Interfere With Other Electronic
■New Ergonomic Soft Grip lncreases Comfort-the Unique Shape
■Easier To Hold For Extended Use
■Ultra Fast Clutch Minimizes Torque Reaction Devices
■Conforms to EMI,EMC international Safety Standards.

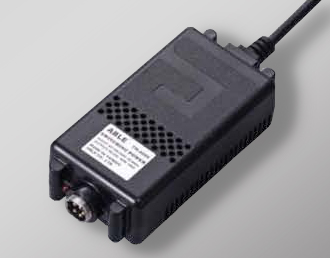

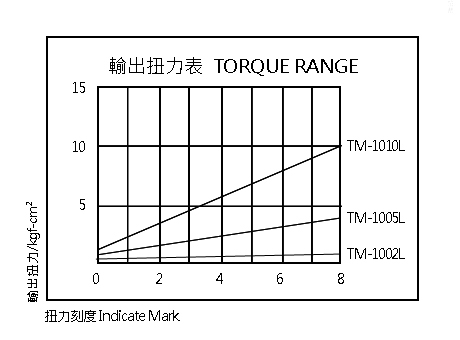

型號(Item NO.) TM-1002L TM-1005L TM-1010L  輸入電壓Input  24Vdc 扭力 (Torque Range) Kgf-cm 0.2~1.2 0.5~4.5 1.0~10 Lbf-in 0.17~1.04 0.44~3.9 0.87~8.7 N-m 0.02~0.12 0.05~0.44 0.1~0.97 空轉速r.p.m. 1000 適用螺絲 (m/m) 機械牙Ø徑 (Machine) 1.0~2.6(mm) 0.04~0.10(in) 1.6~3.0(mm) 0.06~0.12(in) 自攻牙Ø徑 (Tapping) 1.0~2.3(mm) 0.04~0.09(in) 1.6~2.6(mm) 0.06~0.10(in) Plan Of Item     輸出扭力表(TORQUE RANGE)         Switching power吊掛式         Plan  型號(Item NO.)  TM-4500  輸入電壓(INPUT)  100-240VAC 50~60Hz  輸出電壓(OUTPUT)  24VDC 120W MAX  長度(LENGTH)  135mm  重量(WEIGHT)  350g

Certificate:

• CE

Order Information:

• Minimum Order: Negotiable
• Branded Product
